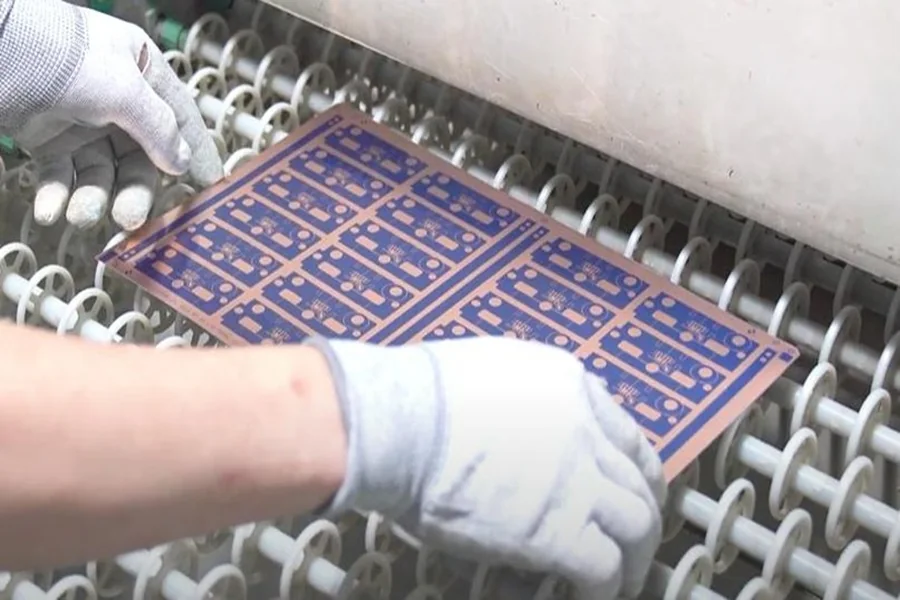

Metal core PCB, also known as MCPCB, is a specialized type of printed circuit board designed to efficiently dissipate heat away from critical components. In contrast to traditional FR4 PCBs, a metal core PCB uses a metal base—usually aluminum, copper, or a mixture of both—to manage thermal conductivity. This design makes it ideal for high-power applications where excess heat could compromise performance or damage sensitive electronics. With increasing demand for power-dense, high-performance systems, metal core PCBs have become a cornerstone of modern electronic design.
What Makes Metal Core PCB Different
The defining feature of a metal core PCB is its layered structure that includes a thermally conductive metal base. This base is typically bonded to a dielectric layer and a copper circuit layer. The metal core not only acts as a strong mechanical foundation but also serves to draw heat away from heat-generating components such as power transistors, LEDs, and high-current ICs. The thermal conductivity of these PCBs ranges from 1W/mK to over 4W/mK depending on the application and material selection. This capability allows them to maintain lower operating temperatures, which directly impacts the longevity and reliability of electronic systems.
Another distinct benefit of metal core PCBs is their ability to handle high current loads. Thanks to the solid metal base, these PCBs can accommodate wider traces and higher amperage without deformation or overheating. This feature makes them highly suitable for industrial control systems, motor drives, automotive electronics, and power supply modules. Moreover, they offer better electromagnetic shielding and mechanical strength compared to standard PCBs, especially in rugged environments where vibration or physical stress is a concern.
Applications Where Metal Core PCB Excels
Metal core PCBs are commonly found in LED lighting systems. LEDs generate a significant amount of heat, and the ability of MCPCBs to rapidly transfer that heat to a heat sink or housing structure prevents thermal failure and ensures consistent performance. This is especially crucial in high-lumen applications such as automotive headlights, commercial lighting, and outdoor fixtures. In these use cases, MCPCBs enable compact designs without compromising on safety or longevity.
In power electronics, metal core PCBs are used for inverters, rectifiers, and power amplifiers where efficient heat dissipation is necessary for continuous operation. Telecom base stations and server farms also benefit from these boards, as they support high-density designs while reducing the need for additional cooling systems. Other key applications include solar power inverters, electric vehicle battery modules, medical scanning equipment, and military-grade systems.
Material Options for Metal Core PCB
Aluminum is the most widely used base material in MCPCBs due to its low cost, excellent thermal conductivity, and lightweight nature. It is ideal for LED lighting and general-purpose power electronics. Copper, on the other hand, offers superior thermal performance but comes at a higher cost and weight. Copper-based metal core PCBs are typically used in high-performance applications like RF modules, automotive power control units, and aerospace systems where performance takes precedence over cost.
Some advanced designs also include hybrid structures with multiple metal layers or embedded heat sinks to handle extreme thermal loads. The choice of dielectric material between the metal base and copper layer also plays a vital role in determining overall thermal conductivity and electrical insulation. Depending on the specific application, manufacturers can fine-tune the thickness and type of dielectric to optimize performance.
Benefits of Using Metal Core PCB
The primary advantage of using metal core PCB is thermal management. By keeping heat away from vital electronic components, MCPCBs help reduce failure rates and extend the operational life of the product. Another key benefit is improved mechanical durability. The rigid metal base offers strong resistance to bending, warping, and shock, which is important in high-vibration environments like automotive and industrial settings.
In addition to thermal and mechanical advantages, MCPCBs also contribute to space-saving designs. Since heat dissipation is more efficient, designers can place components closer together, reducing board size and weight. This makes them an excellent choice for compact devices where space and thermal efficiency are both critical. The overall result is a more reliable and efficient system with reduced cooling requirements and longer product lifespans.
Choosing a Trusted Metal Core PCB Manufacturer
To fully leverage the advantages of metal core PCBs, it’s essential to work with an experienced and technically proficient metal core PCB manufacturer. Not all manufacturers have the tools, processes, or material expertise required to produce high-quality MCPCBs with precise thermal and electrical properties. Whether you need aluminum-based boards for LED lighting or advanced copper-core designs for power systems, a reliable manufacturing partner ensures consistent quality, customizability, and cost-efficiency. If you’re looking to build high-performance electronics that demand superior heat management, connect with a specialized metal core PCB manufacturer capable of delivering robust solutions tailored to your application.
